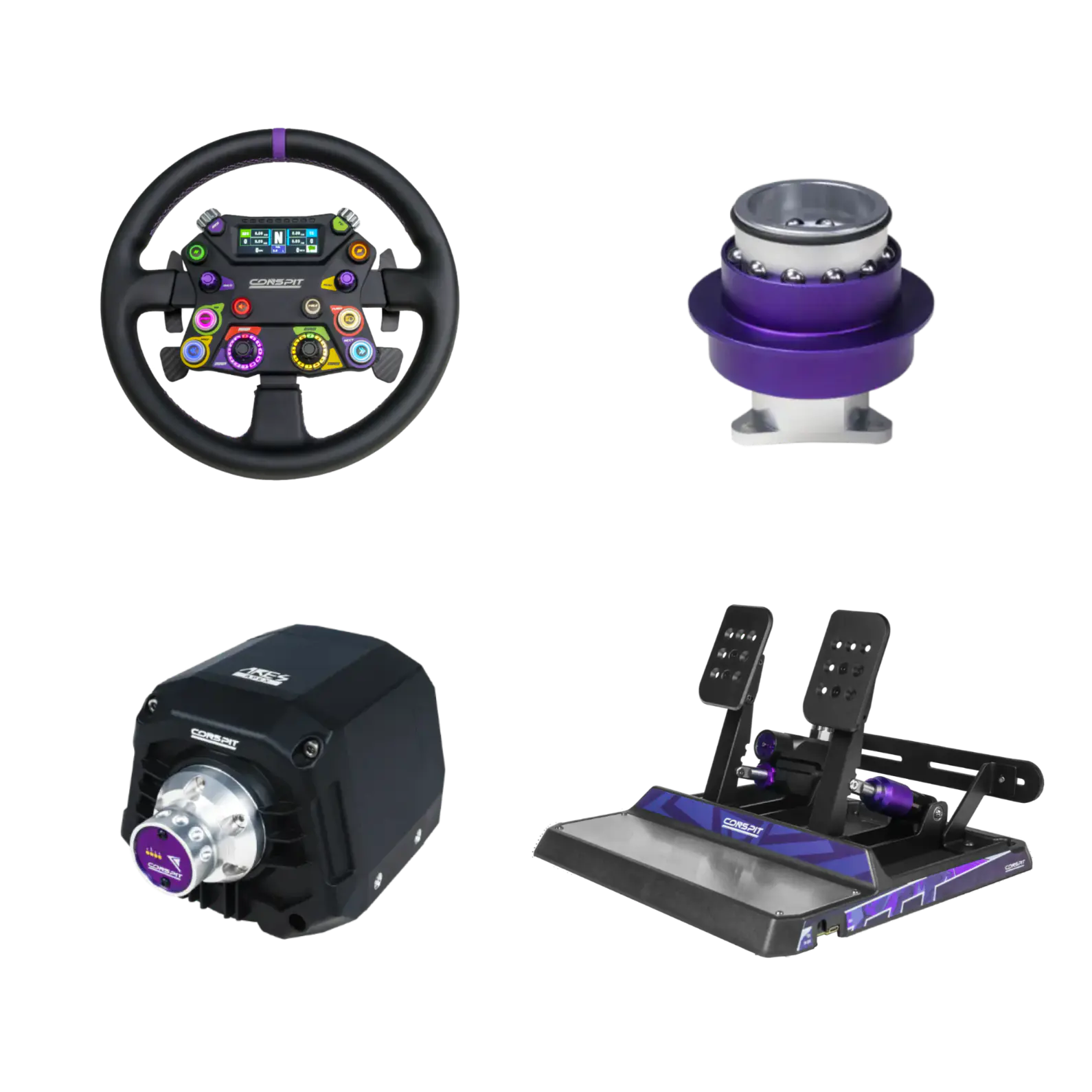

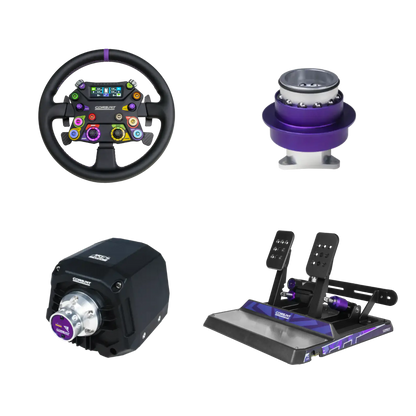

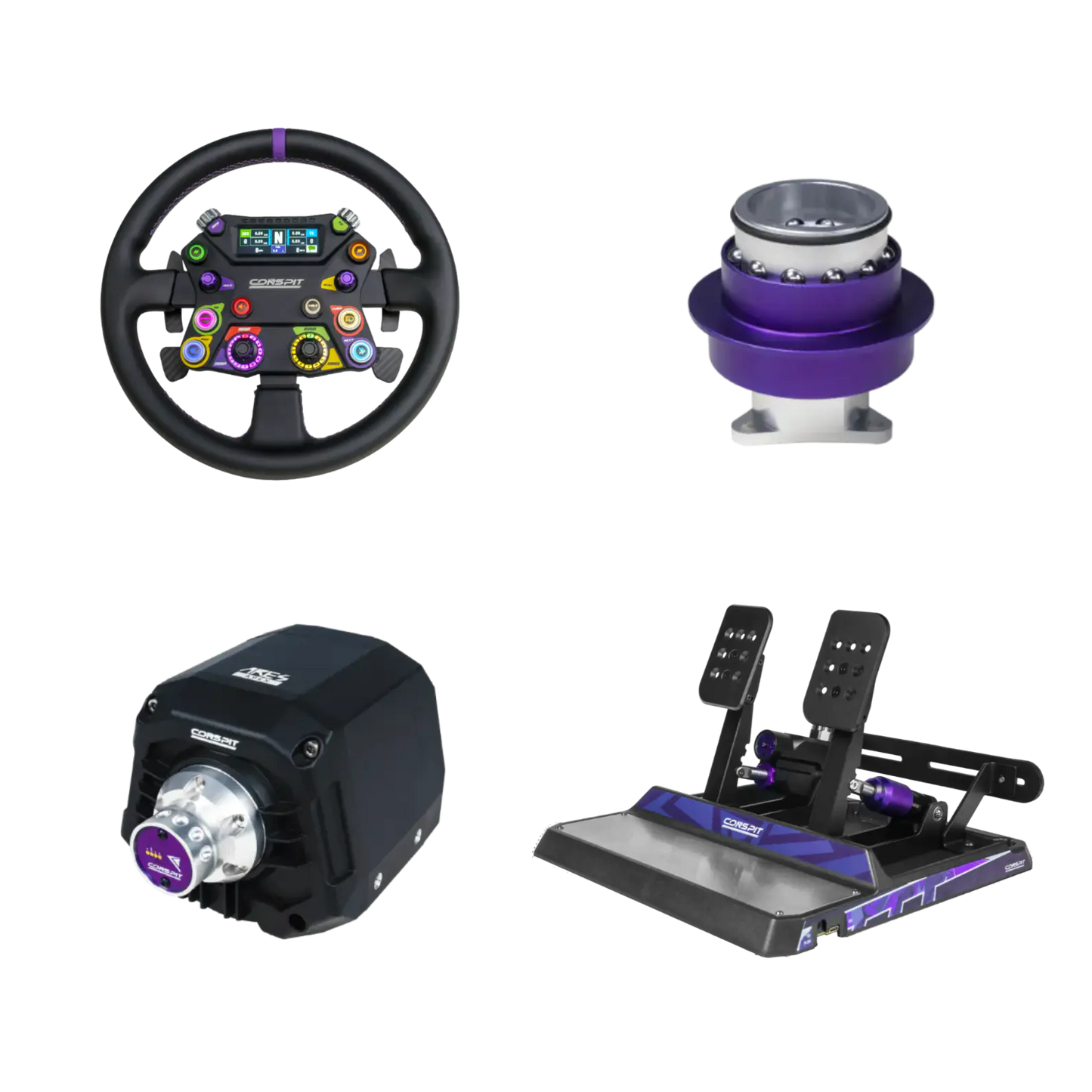

APEX BUNDLE 8NM
APEX BUNDLE 8NM
No se pudo cargar la disponibilidad de retiro
310 APEX
Master a New Dimension
The 310 APEX serves as an open-wheel hub, featuring CONSPIT's exclusive 2.99-inch built-in LCD display and compatibility with multiple rim designs. Its full-metal construction delivers premium craftsmanship, combined with innovative control features that elevate entry-level sim racing to new heights.

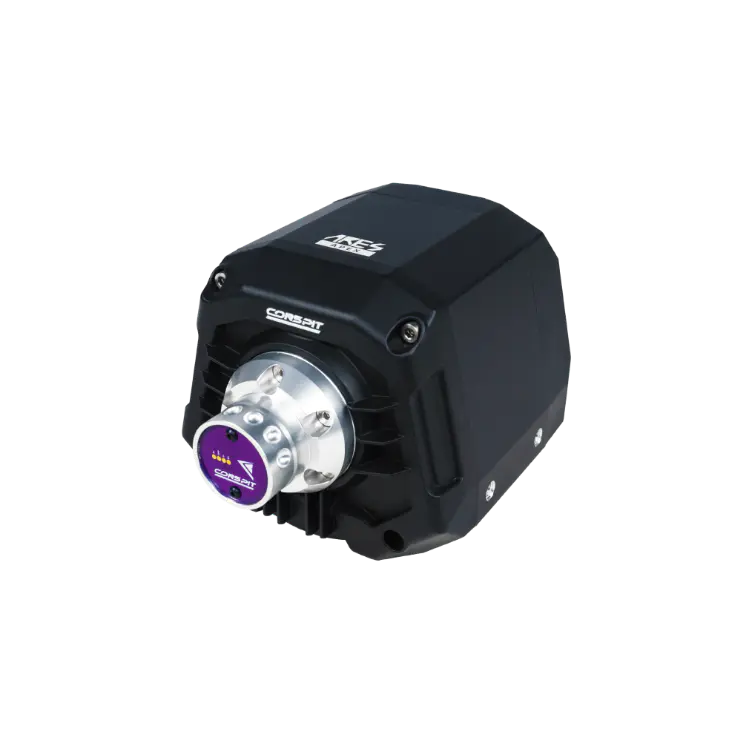

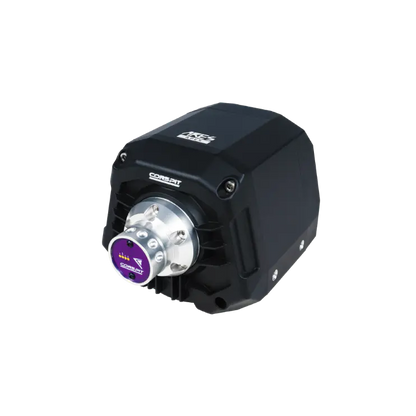

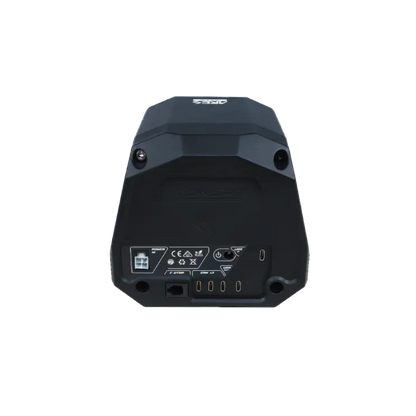

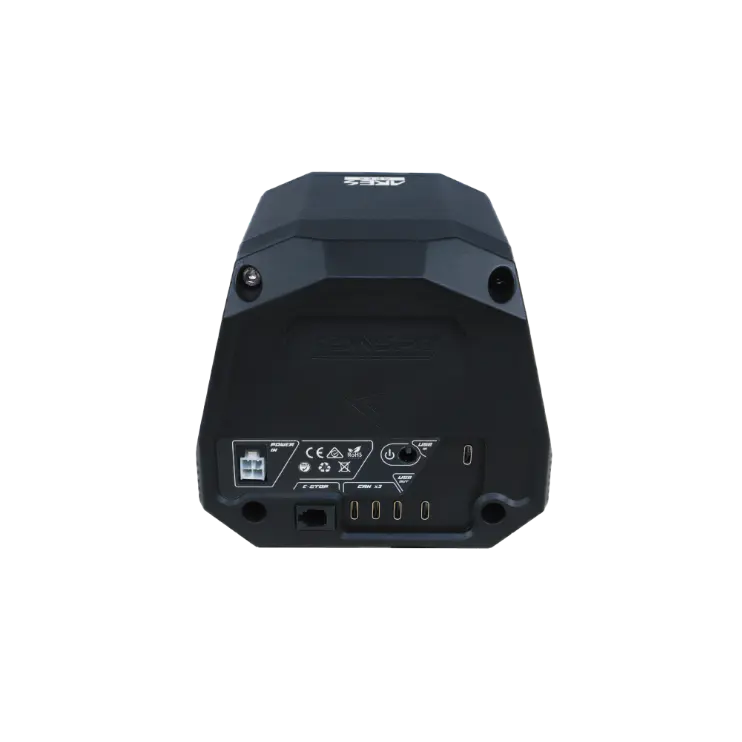

ARES APEX
Realism, Beyond Force
Overview
As the latest creation of the CONSPIT ARES Series, ARES APEX is not about simply “lowering the bar,” but about condensing the series’ core technologies and performance ambitions into a more compact design. With its refined form and an approach that brings players closer, APEX makes professional-grade direct drive truly accessible.
Equipped with a motor purpose-built for sim racing and a force feedback system fine-tuned with the input of professional drivers, ARES APEX is dedicated to recreating the most authentic sense of immersion in every detail of the drive.
Precision Performance
- Asymmetric dual processors at 170MHz + 168MHz for high-speed, stable performance.
- 21-bit magnetic encoder for precise, high-resolution steering input detection.
- High-durability industrial-grade slip ring Built for long-lasting durability and reliability, ensuring stable, interference-free signal transmission. In combination with the USB-A Adapter Spacer, it enables seamless USB passthrough for any third-party wheel — eliminating the latency and interference issues of wireless solutions.
CPP APEX
Competitive Excellence
Hydraulic Revolution, Within Reach
Merging CONSPIT's patented sensor technology with advanced hydraulic engineering, the CPP APEX delivers precise control and high performance, redefining accessible hydraulic brake system at a competitive price.
Hydraulic Innovation - Vertical Dual-Chamber Architecture
Building on CONSPIT's core hydraulic technology, the CPP APEX features a compact vertical dual-chamber design, integrating hydraulic and elastomer cylinders. Its one- piece die-cast aluminum brake cylinder, CNC-machined for precision, delivers smooth pedal feel and outstanding durability.
| Specification Category | 310 APEX | ARES APEX | CPP APEX |
|---|---|---|---|
| Product Type | 310MM Round Sim Racing Wheel | Direct Drive Wheel Base | Hydraulic Pedal Set |
| Construction Materials | CNC Aluminum Alloy, Steel | Aerospace-grade Aluminum | Aluminum Alloy, Carbon Steel |
| Dimensions | 310 × 310 × 89 mm | 134 × 150 × 196 mm | 328 × 333 × 227 mm |
| Display | 2.99″ Color LCD (800 × 268) | N/A | N/A |
| LED Indicators | 33 RGB LEDs (RPM & Flag indicators) | N/A | N/A |
| Buttons / Inputs | 8 RGB Buttons, 2 Thumb Encoders, 2 Rotary Switches | N/A | N/A |
| Shifters / Paddles | Magnetic Hall-Effect Shifters | N/A | Optional Clutch Pedal Expansion |
| Brake System | N/A | N/A | Hydraulic Brake System |
| Brake Sensor | N/A | N/A | Dual-Chamber Pressure Sensor (10 MPa) |
| Maximum Brake Pressure | N/A | N/A | 100 bar |
| Motor Type | N/A | Skew-Pole Direct Drive Motor | N/A |
| Peak Torque | N/A | 8 Nm | N/A |
| Encoder Resolution | N/A | 21-bit Magnetic Encoder | N/A |
| Connectivity | CDR QR | USB | USB / Conspit CAN |
| Software Compatibility | Conspit Link 2.0, SimHub | Conspit Link 2.0 | Conspit Link 2.0, SimHub |
| Platform Support | Windows PC | Windows PC | Windows PC |
