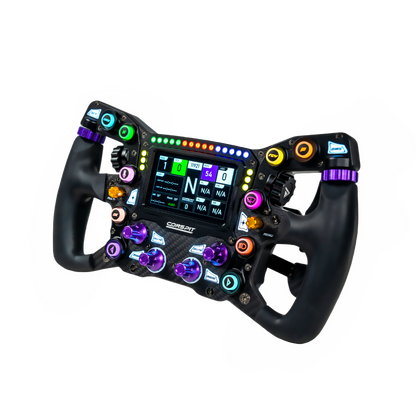

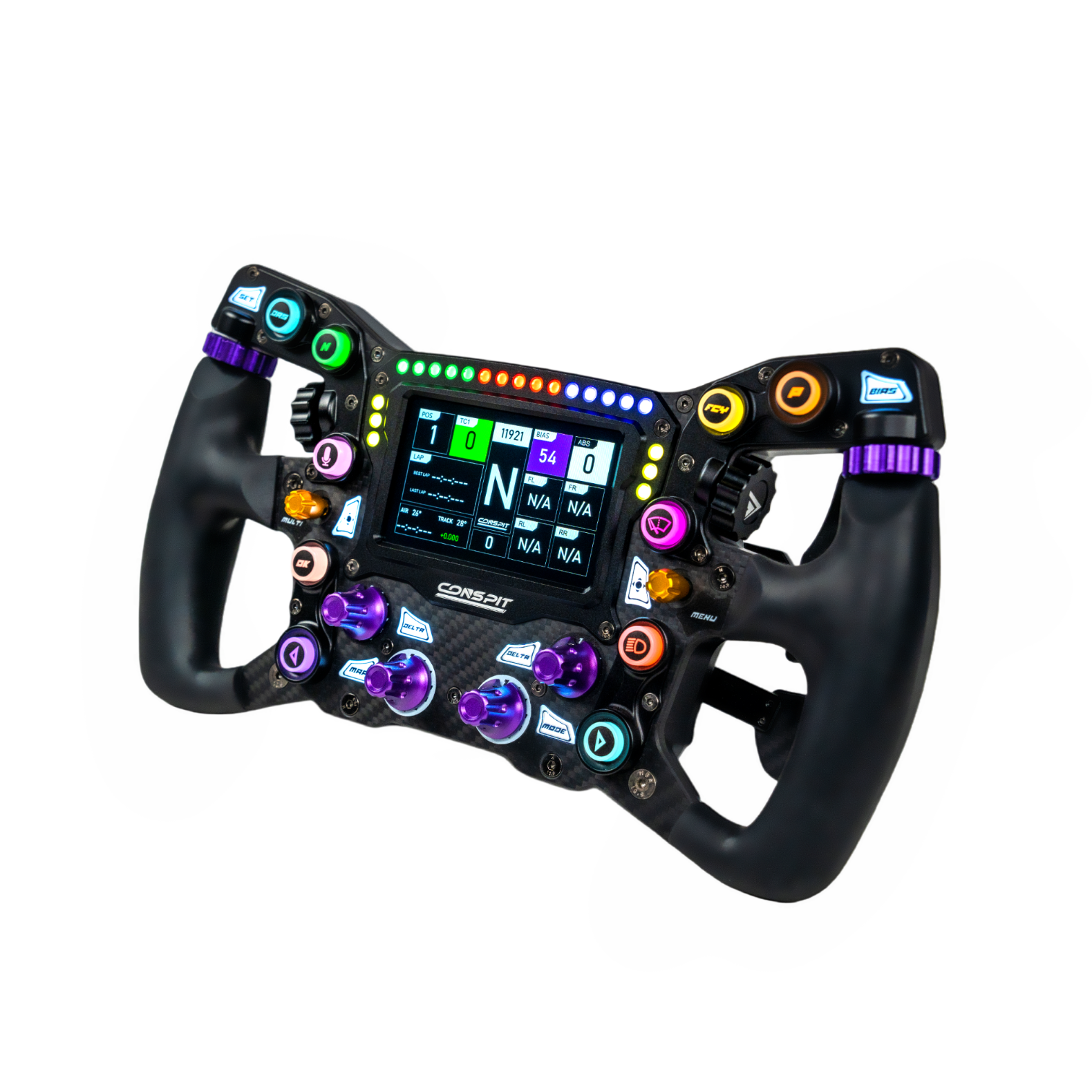

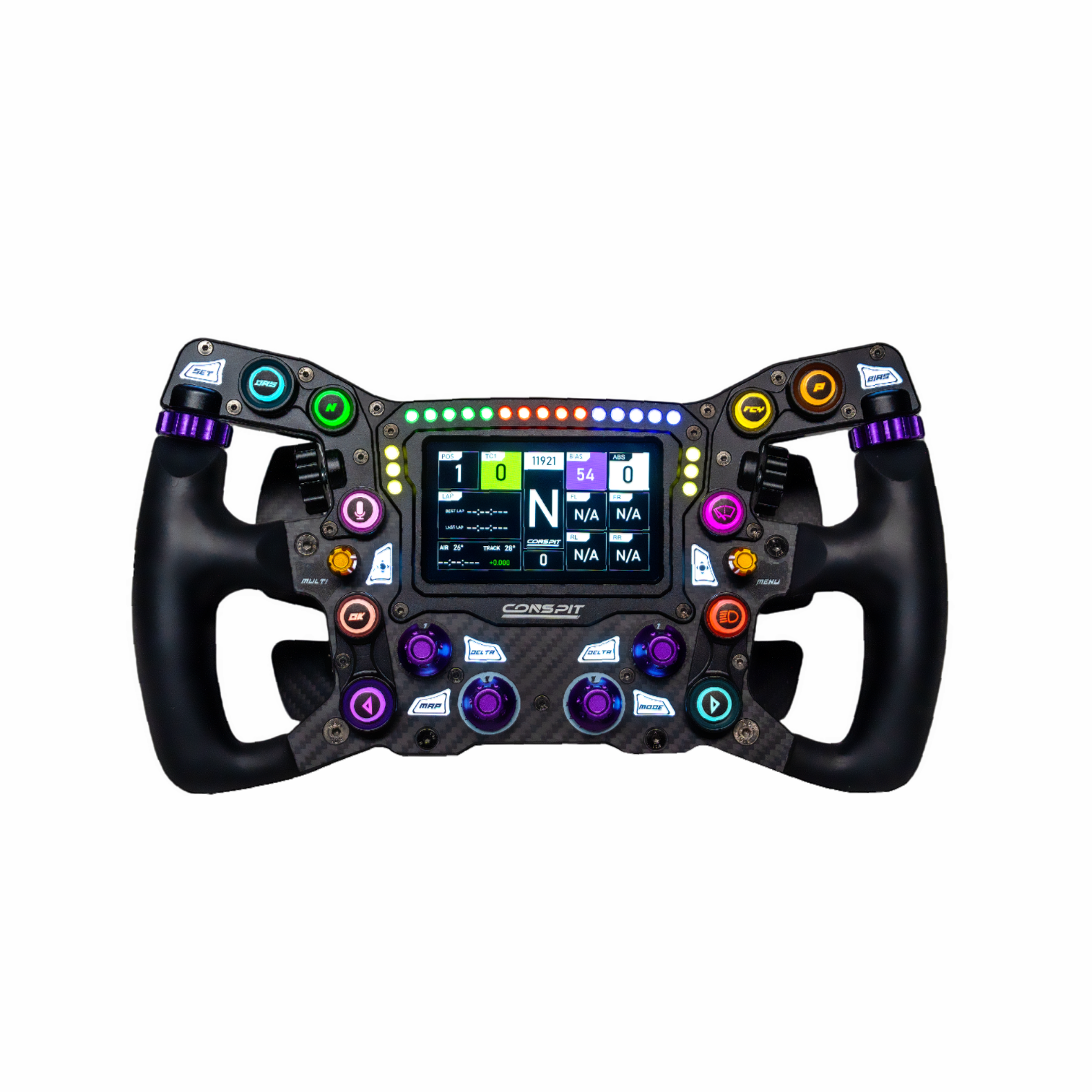

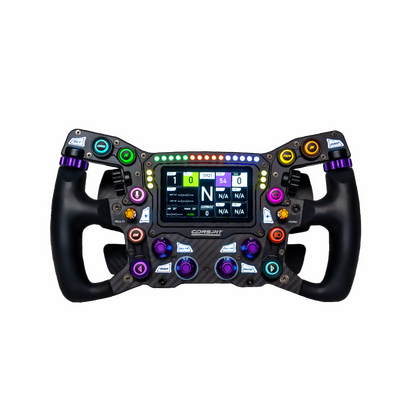

MAX 01

MAX Sensation

Crafted with a complete focus on competitive sim-driving, MAX 01 is equipped with CONSPIT's proprietary advanced control features and offers 100% plug-and-play compatibility with SimHub, empowering drivers to unlock their highest racing potential.

Fully Adjustable Built-in Dashboard

• 4-inch high-resolution touchscreen with 21 programmable RGB dash lights.
• Fully compatible with SimHub for precise indicators and customizable race data displays.
• Custom SimHub Dash by CONSPIT, ensuring exclusive seamless integration with CONSPIT’s hardware design.
• Durable aluminum alloy frame with protective flanges around the screen.

RGB Buttons & Function Lights Array

• 10 RGB button modules with precise tactile feedback.
• 8 RGB function light zones for racecar status, functional info, or track/sector data.
• Independently customizable button lights, function lights, and race telemetry feedback.

Robust and Durable Carbon-Aluminum Structure

The front panel is constructed from 5mm thick real carbon fiber, combined with a one-piece aluminum alloy body. Optimized stress points and cutouts ensure maximum rigidity, even with high-torque DD wheels.

Rotary knobs, thumb encoders, and button surrounds are crafted from metal for a premium, solid feel.

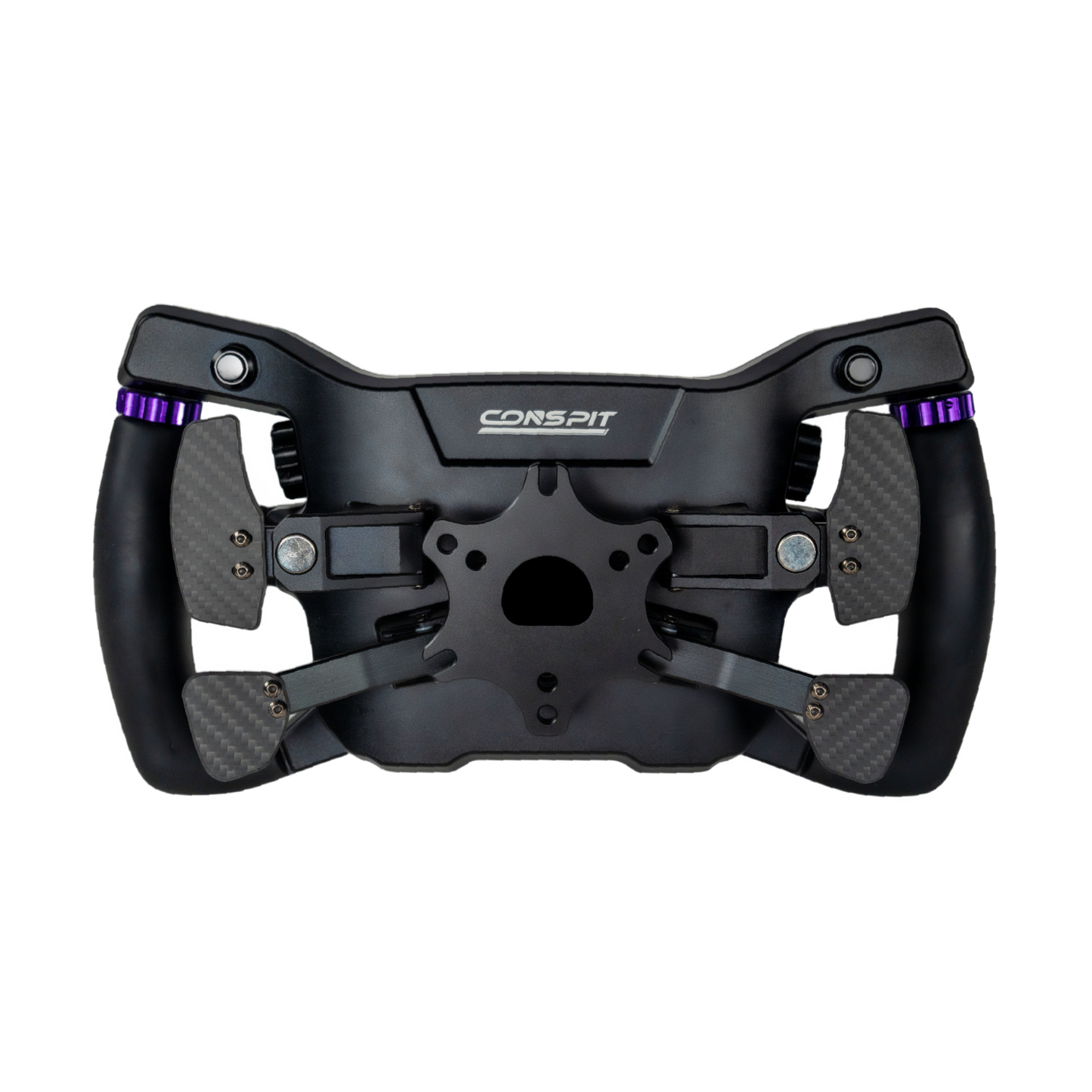

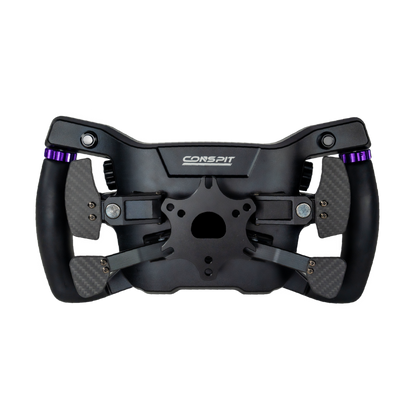

Innovative Rear Push Button

Inspired by real-world racing designs, a pair of quick-access buttons are conveniently positioned behind the steering wheel, expanding control options for racing.

Open-structure Upper Thumb Dials

The open design of the purple thumb wheels allows operation with both thumb and index finger, improving control efficiency.

Freed from its enclosure, this pair of encoders also visually integrates into the steering wheel's profile, adding a unique aesthetic touch.

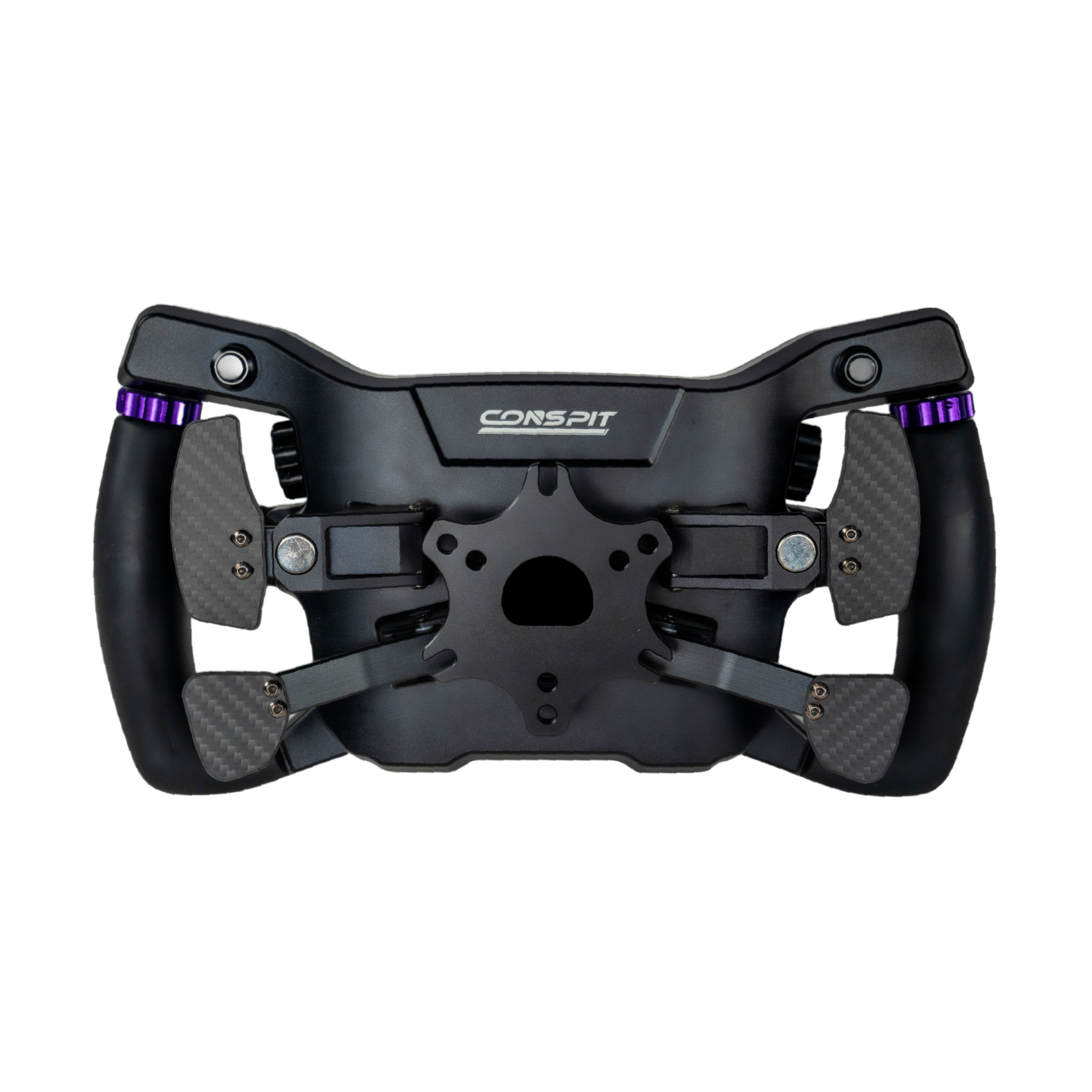

Paddles – Interactive Sensation

Shift paddle modules meticulously crafted to achieve the perfect balance between silence and tactile feedback.

 Standard dual-clutch paddles with a firm feel, assisting drivers with confident launch control on every start.

Optimal Grip for the 300mm Grip-to-Grip Distance

Ergonomically designed for a 300mm grip-to-grip distance, ensuring comfort and security during long drives.

Hand grips are made from durable TPU, molded for precision to prevent shedding or fading.

Conspit Link 2.0 Advanced Control Features

Quick calibration of paddles, and advanced controls via Conspit Link 2.0:

Dual-mode Rotary Knobs: Can be set as a rotary switch or encoder.

Encoders Remap: Positions on the rotary knob shift button mappings for thumb encoders, enabling multiple in-car adjustments without extra encoders.

Rotary Macro: Lower rotary knob controls upper knob positions, allowing rapid switching between preset vehicle control maps.

Quick-Con Adapter with Independent USB Connection

• Standard 70mm PCD adapter, ensuring broad compatibility with various options.
• Heavy-duty quick connector ensures stable, reliable connections.
• Comes with a detachable coiled cable featuring a direct USB connection.

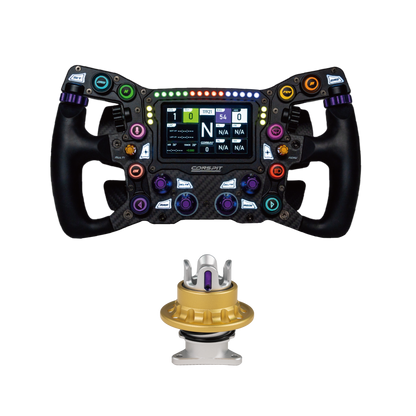

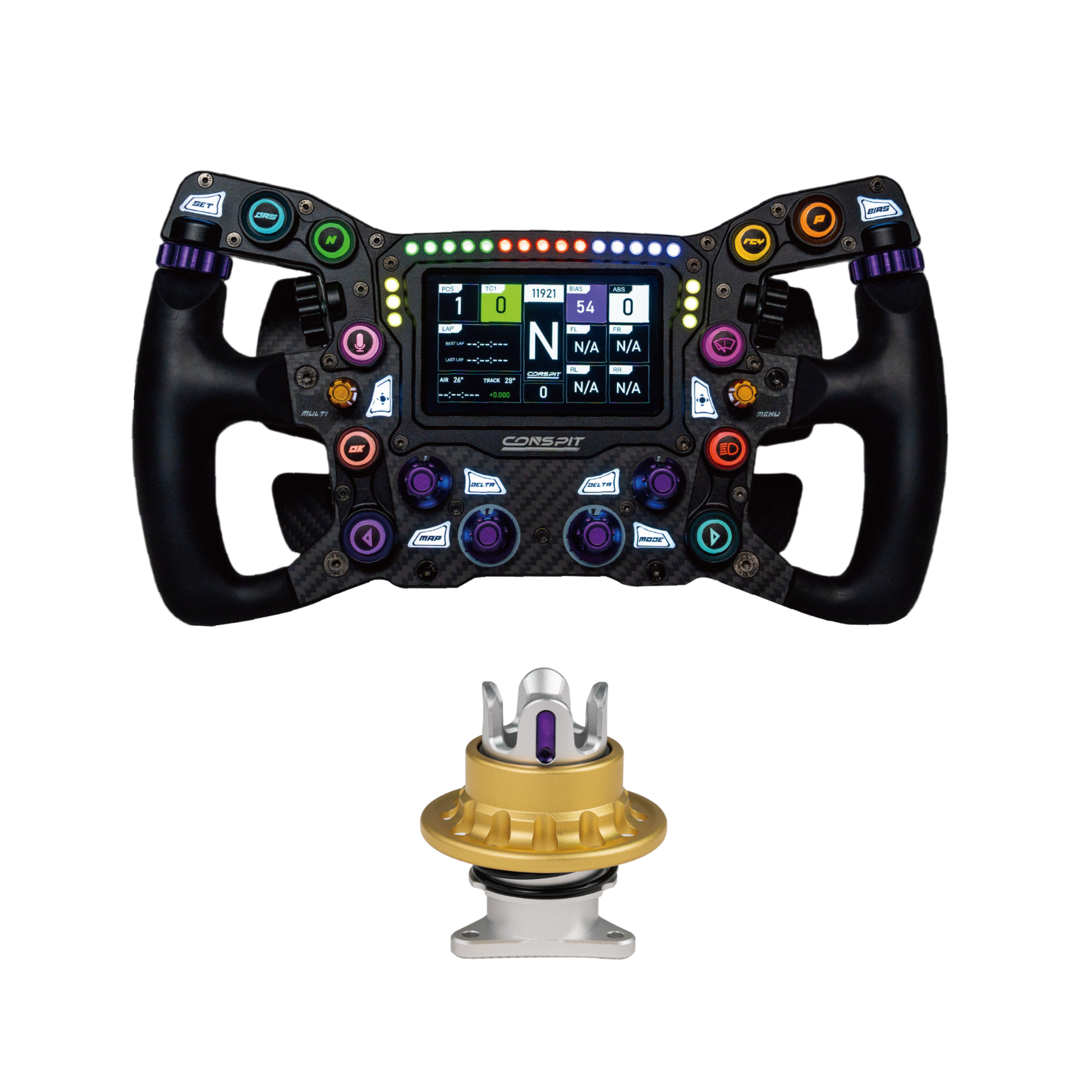

CDP Quick Release (Optional)

The MAX 01 is optionally compatible with the CDP quick release system for direct connection to CONSPIT ARES wheelbase.

It features a Formula-inspired CNC-machined 7075 aluminum clasp and ball locking design, with the clasp handling torque transmission and the balls ensuring precise longitudinal positioning. Spring contacts provide EMI-resistant electrical stability, outperforming wireless systems. Optimized contact geometry reduces ball wear, ensuring zero-play durability under extreme loads.
